Our EV850-2T two-wheel laser screed delivers high-precision concrete leveling for large-area floor construction. Equipped with an imported laser control system and independent suspension design, this lightweight self-propelled machine enables single-operator work, improves floor flatness and greatly cuts labor & construction costs.
Key Features
High‑frequency vibration for compaction
High‑frequency vibration realizes effective concrete compaction.
Superior flatness & construction quality
Imported laser system guarantees high‑accuracy floor flatness.
Boost efficiency & reduce labor cost
Greatly improves construction speed, cuts manual labor inputs.
Easy operation with low labor intensity
Auto & manual dual‑control, friendly for operators.
Convenient installation & transportation
Simple assembly, easy to transport to different job‑sites.
Lightweight & flexible for single operation
Compact structure, one‑person available for whole operation.
Core Advantages
Imported laser leveling system automatically controls elevation for perfect ground flatness. Wheels and upper‑body non‑interference, stable driving on complex job‑site ground. Fully electronic control with fast response, high precision and stable performance. Honda power source, lightweight self‑propelled design, fuel‑saving & low construction cost. Control‑panel knob supports free adjustment of travel and working speed. Auto & manual dual‑control, flexible operation, supports single‑person work. Electric‑driven two‑wheel independent moving, no interference from leveling head. Guarantee large‑area consistent elevation, reduce construction joints & maintenance cost.
Product Specification

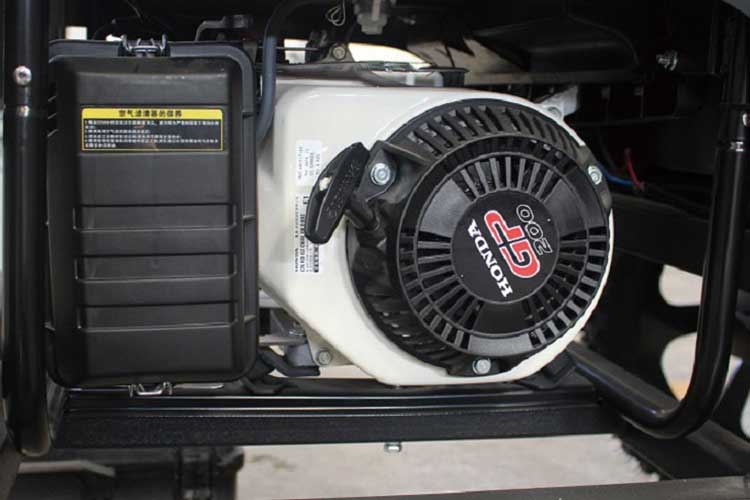

Power Source Honda, Japan Generator Type Air cooled 4‑stroke OHV engine Engine Model Honda GX200 Fuel Tank Capacity 17L Fuel Consumption 1.2‑1.4L/h Laser Control Mode Microcomputer laser scanning Laser Measure Control System Danfoss Walking Mode Electronically controlled automatic walking Drive System Two‑wheel automatic drive Generate Power 3.2KW Tire Solid tire Work Voltage Single phase 220V‑50HZ Level Adjustment Leveling head self‑adjusting Level Head Type Heavy self‑balancing Working Width 2.6M /3M Vibratory Force 2000N Vibrational Frequency 4200 times/minute Machine Weight 255Kg Dimension(L×W×H) 3210×2600×1160 mm
Application
