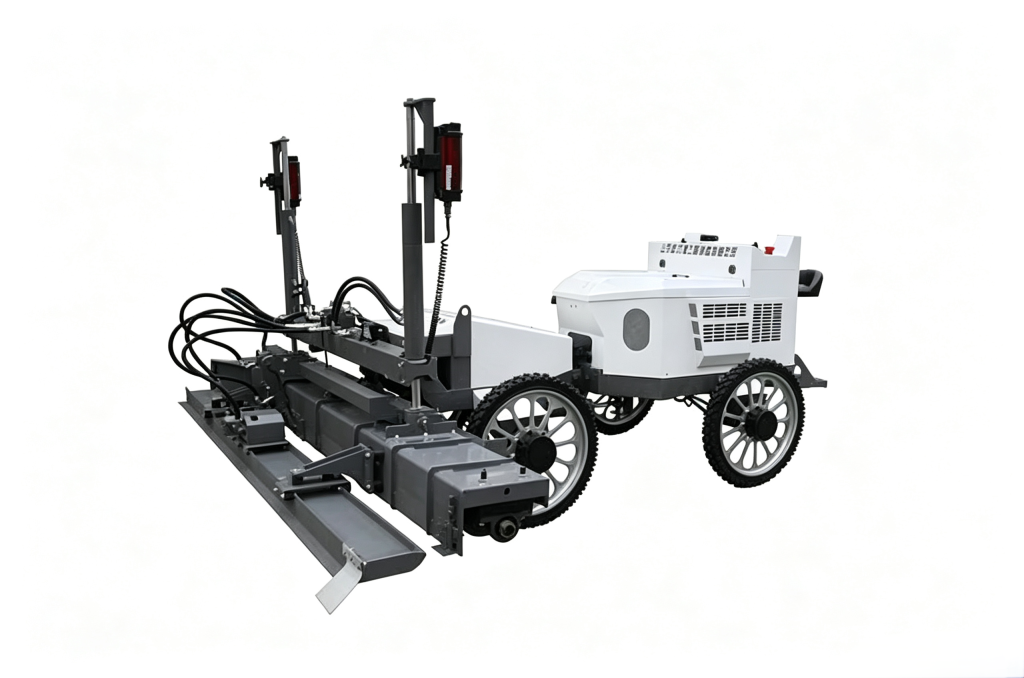

High Precision Concrete Floor Leveling Machine for Industrial Warehouse Construction
The S-998 four-wheel drive laser screed is a ride-on concrete leveling machine designed for large-area concrete pavement construction. Equipped with imported Briggs & Stratton engine and intelligent laser control system, it realizes automatic leveling, material distribution and vibration compaction at one time. Widely used in industrial workshops, logistics warehouses, shopping malls and large ground projects, greatly improving floor flatness and construction efficiency.
Equipped with American Briggs & Stratton engine, stable strong power, support one-button electric start, reliable startup performance even in low-temperature winter environment.
3m Integrated Leveling Working Head
3 meters wide one-piece leveling head integrates concrete stirring, spreading, vibrating and leveling. Multiple working procedures finished in one pass, save labor cost and speed up construction.
Intelligent Laser Precision Control
Independent laser receivers maintain constant ground elevation, effectively reduce manual construction errors, support flat surface, single slope and double slope ground construction requirements.

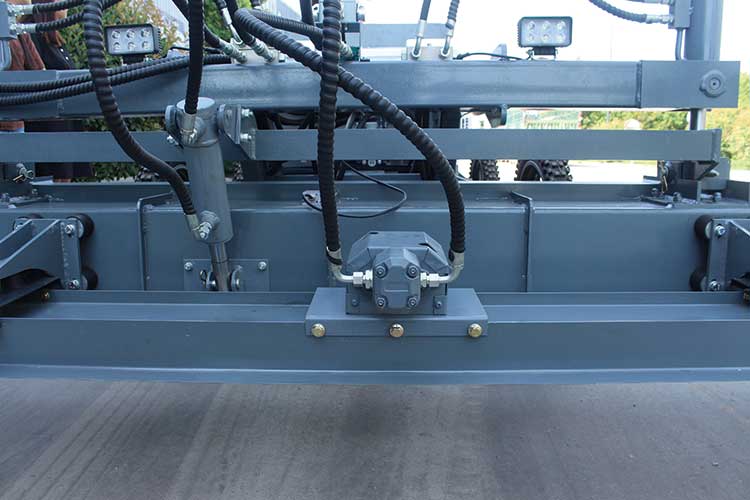

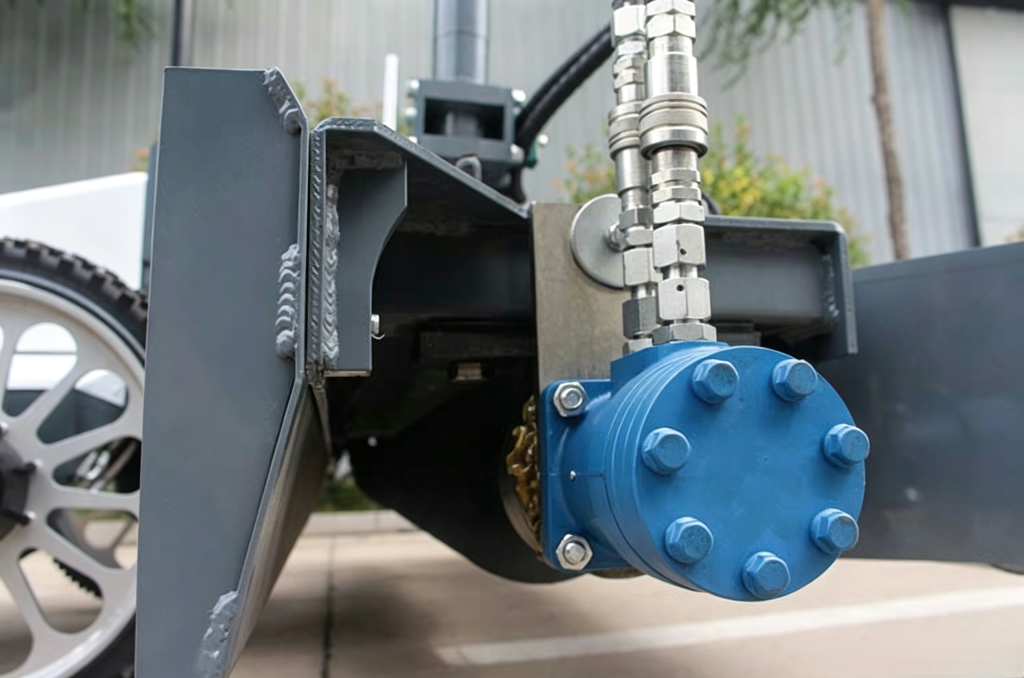

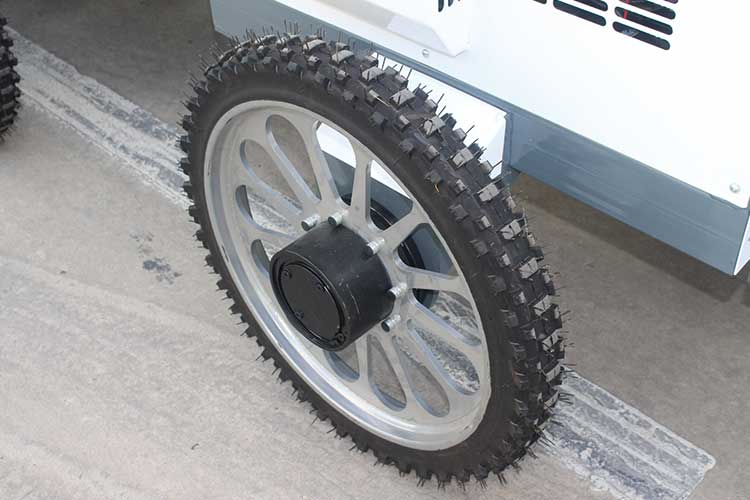

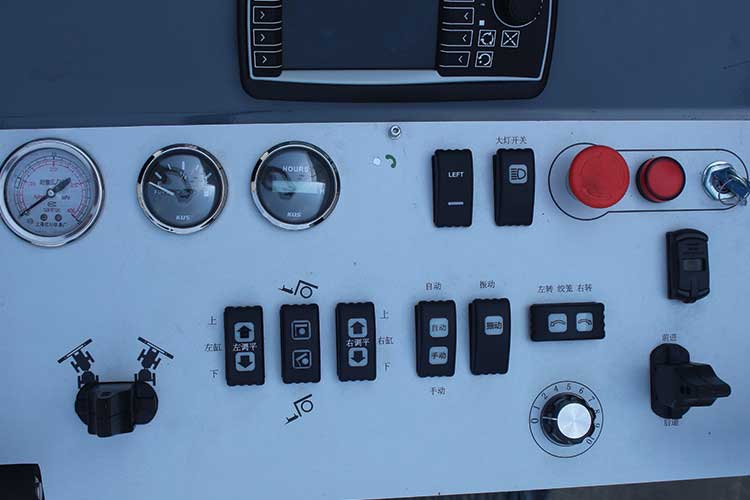

Product Detail Gallery
Main Technical Parameters
Item
Specification
Item
Specification
Engine
Briggs&Stratton
Engine Power
35HP / 3600rpm
Starting Mode
Electric start
Fuel Tank Capacity
17L
Fuel Consumption
1.2~3L/h
Vibration Mode
Motor vibration
Vibration Frequency
6000 times/min
Vibratory Force
3000N
Leveling Width
3 Meters
Leveling Thickness
6~40 cm
Paving Method
Stirring & Spreading
Walking System
Hydraulic four-wheel drive
Steering Control
Electronic control
Tire Specification
100/90-21 solid tire
Working Efficiency
400~600 ㎡/h
Supported Ground Type
Flat / Single slope / Double slope
Overall Dimension(L×W×H)
3400×3000×1300 mm
Machine Weight
960 Kg
Key Features
Greatly improve concrete floor flatness and surface quality
Integrated construction process, optimize workflow and increase project profit
Powerful hydraulic vibration system for excellent concrete compaction
4-wheel hydraulic drive with strong traction, adapt to complex construction site
