Ride-on Concrete Laser Screed For High Precision Floor Construction
Product Overview

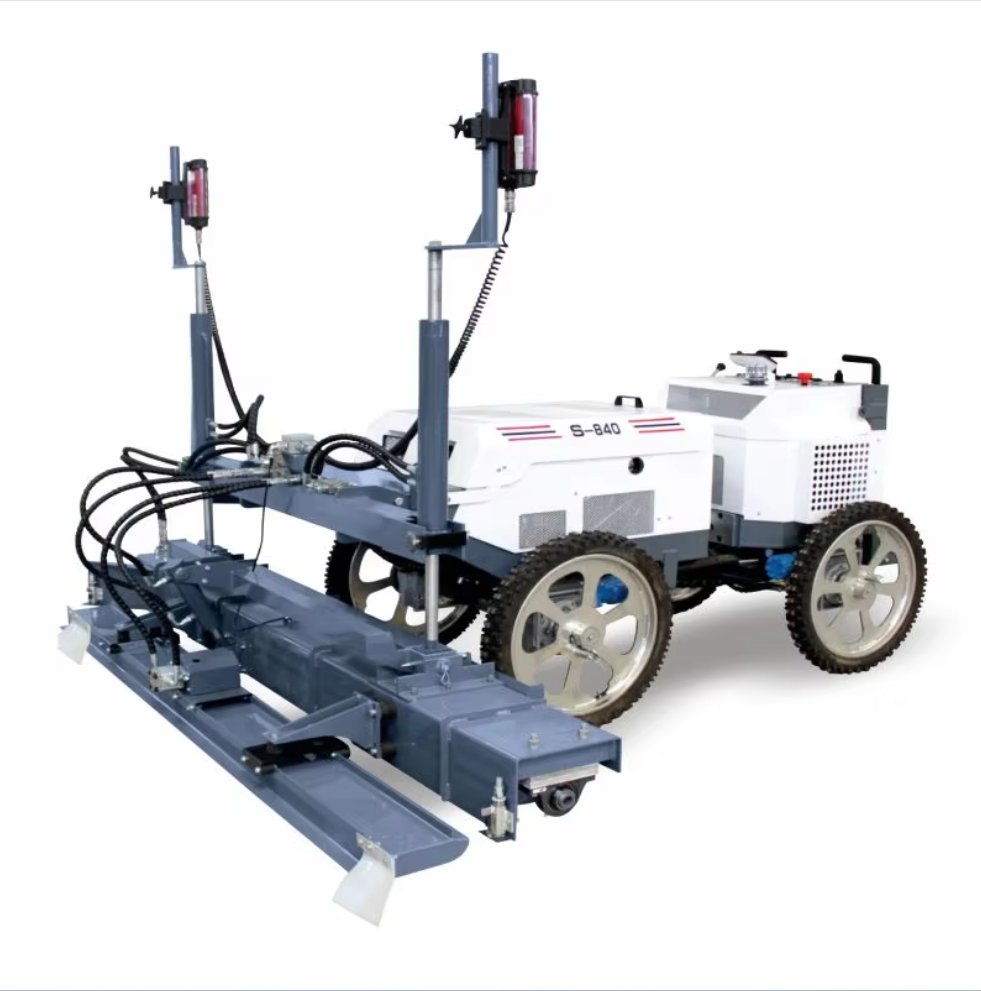

S-840 four-wheel laser hydraulic leveling machine adopts lightweight body design with total weight only 880kg. Equipped with imported 23HP Briggs & Stratton gasoline engine, full electric control system for vibration, steering and travelling. Built-in feeding auger and fine grading function greatly simplify concrete construction work. The intelligent laser control system supports flat, single slope and double slope ground leveling. Only one operator is required to complete high-precision concrete floor paving, widely used for warehouse, factory, parking lot concrete projects.

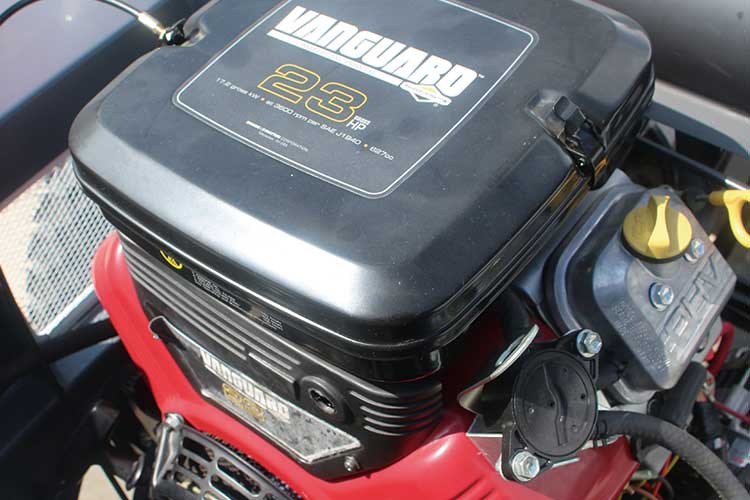

Equipped with 23HP American Briggs&Stratton engine. Full machine weight only 880kg. All key structural components adopt imported accessories to guarantee stable long-term operation.
Integrated Construction Design

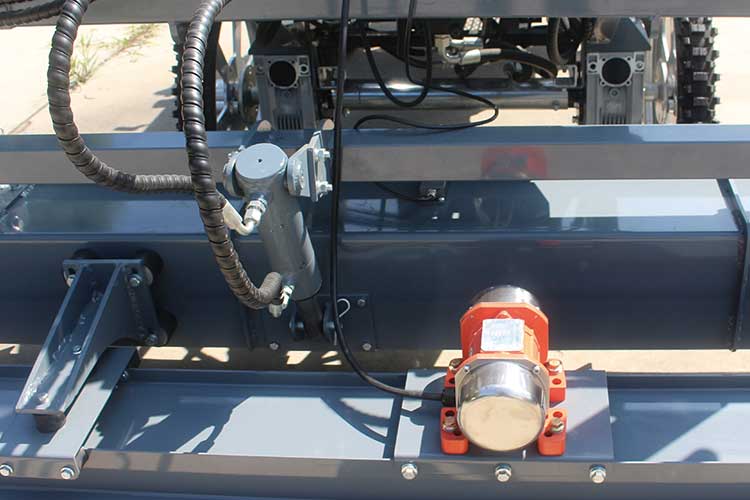

Built-in feeding auger + electric vibration system. Complete stirring, spreading and vibrating in one pass. Built-in fine-tuning function realizes high-precision concrete surface finishing.
Intelligent Laser Automatic Control
Independent laser receiving system supports flat, single slope and double slope construction. Simple intelligent panel, single-person operation, effectively reduce manual leveling errors.
Product Detail Gallery
Main Technical Parameters
Item
Specification
Item
Specification
Power
Honda/Briggs&Stratton
Steering control
Electronic control
Engine power
23HP/3600rmp
Leveling thickness
3-30cm
Start mode
Electric start
Paving method
Stirring and spreading
Fuel tank capacity
17L
Vibration frequency
4,500 times/minute
Fuel consumption
1.5-3L/h
Vibratory force
2000N
Walking mode
Wheel type
Working efficiency
300㎡-500㎡/h

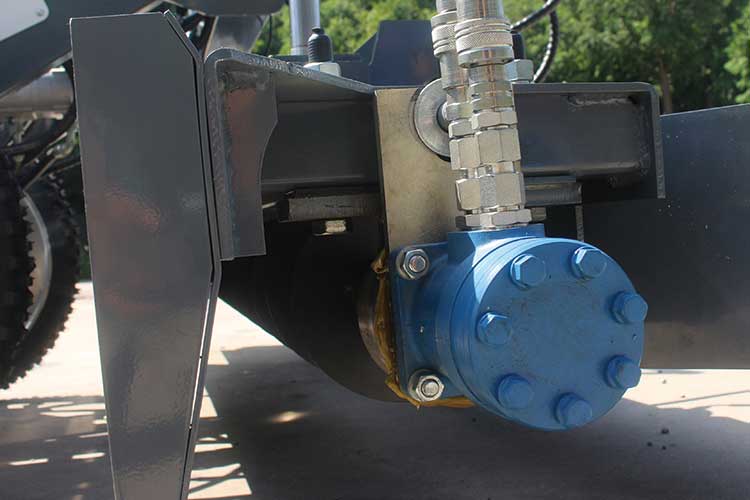

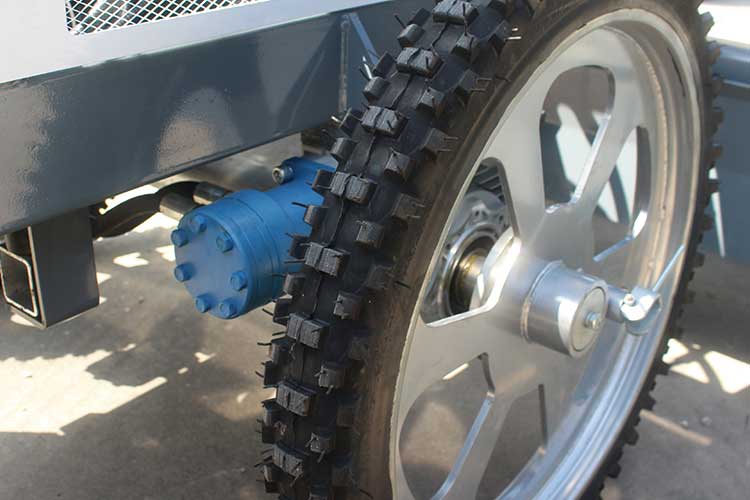

Drive system
Four-wheel hydraulic drive
Working width
2.6M/3M
Laser system
Laser transmitter
Wheel base
910mm
Laser leveling result
Flat / Single slope / Double slope

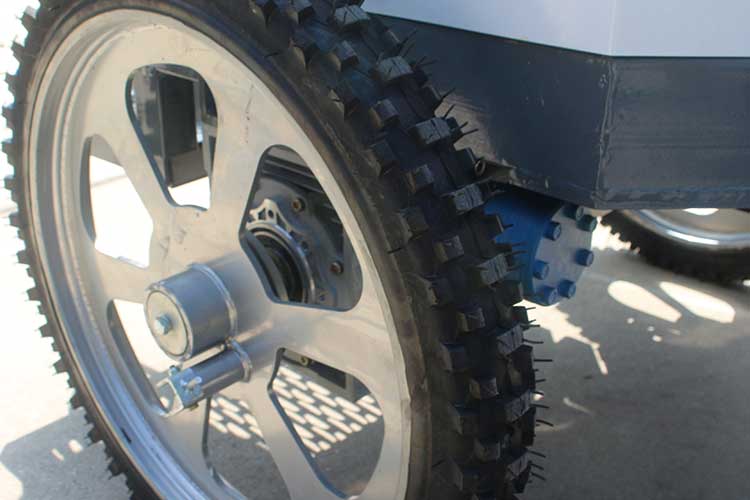

Tire specification
100/90-21 solid tire
Total weight
880Kg
Overall dimension(L×W×H)
3380×2500×1280mm
Key Features
Increased job profitability
Reduced worker fatigue & injuries
4-Wheel Drive for better traction
Auger screed for material spreading
Fine Grade function for final finishing
Auto-calibration for stable performance
