S940 Four‑Wheel Planetary Deceleration Laser Leveller
S940 four‑wheel laser screed delivers high‑accuracy concrete floor leveling for large‑scale industrial floors. Powered by 23HP Briggs engine, hydraulic 4‑wheel drive and built‑in feeding auger, this 920kg lightweight machine supports flat /single‑slope /double‑slope construction, single‑operator available, greatly boosting your jobsite productivity.
Key Features
Precise Leveling & Slope Control
Supports flat, single‑slope and double‑slope concrete construction. Independent laser emitters eliminate elevation errors for consistent floor quality.
Strong 4‑Wheel Hydraulic Drive
23HP Briggs engine + hydraulic four‑wheel drive delivers powerful traction for complex site conditions. Full‑electric steering, travel & vibration.

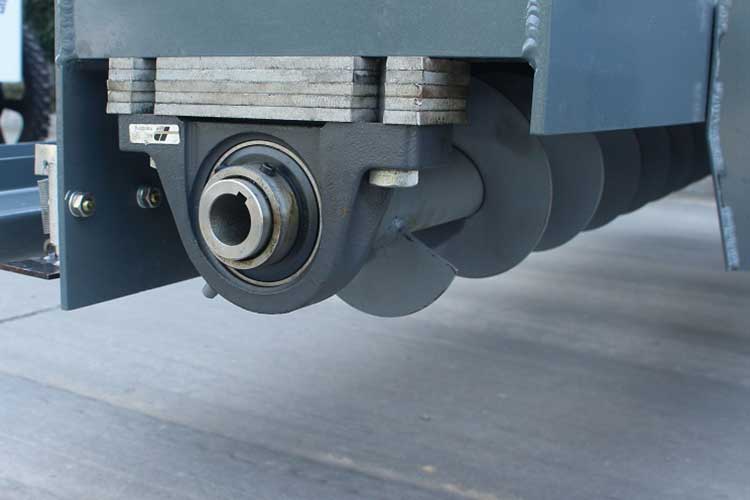

Built‑in Feeding Auger
Integrated feeding auger spreads concrete evenly, cuts labor intensity and improves overall construction finish quality.
Intelligent Single‑person Operation
Smart control panel with fine‑tuning function. All main components adopt imported original parts for stable long‑time performance.
Core Advantages
Lightweight Compact Structure Machine weight only 920kg, compact dimension for convenient transportation and site transfer.
Full‑electric Core Functions Electric vibration, electric steering and electric travel, flexible and responsive operation experience.
23HP American Briggs Power Unit High‑performance 23HP Briggs & Stratton engine provides reliable power output for heavy‑duty construction.
Built‑in Feeding Auger Built‑in feeding auger reduces workers’ labor intensity and optimizes concrete spreading quality.
Precision Fine‑tuning Function Built‑in fine‑tuning module delivers accurate concrete floor control to guarantee high‑quality finished surface.
Imported Main Structural Parts Key structural components are original imports, guaranteeing long‑term stable machine performance.

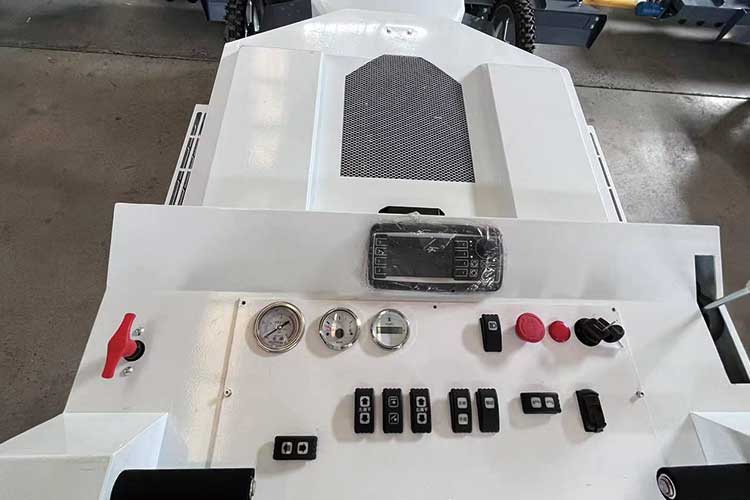

Intelligent Control Panel Human‑friendly intelligent control panel, flexible adjustment, supports complete single‑person operation.
Independent Laser Emitters Independently positioned laser emitters keep consistent ground elevation and effectively avoid construction errors.
Product Specification
| Parameter | Specification |
|---|
| Power Brand | Honda / Briggs&Stratton |
| Engine Power | 23HP / 3600rpm |
| Start Mode | Electric start |
| Steering Control | Electronic control |
| Fuel Tank Capacity | 17L |
| Fuel Consumption | 1.2‑3L/h |
| Leveling Thickness | 3‑30cm |
| Paving Method | Stirring and spreading |
| Vibration Mode | Motor vibration |
| Vibration Frequency | 4500 times/minute |
| Vibratory Force | 2000N |
| Laser Control | Laser transmitter |
| Laser Function | Flat, single slope, double slope |
| Working Efficiency | 300‑500 ㎡/h |
| Working Width | 2.5M |
| Wheel Base | 910mm |
| Tire | 100/90‑21 solid tire |
| Walking Mode | Hydraulic four‑wheel drive |
| Drive System | Four‑wheel hydraulic motor drive |
| Machine Weight | 920 Kg |
| Dimension(L×W×H) | 3380 × 2500 ×1280 mm |

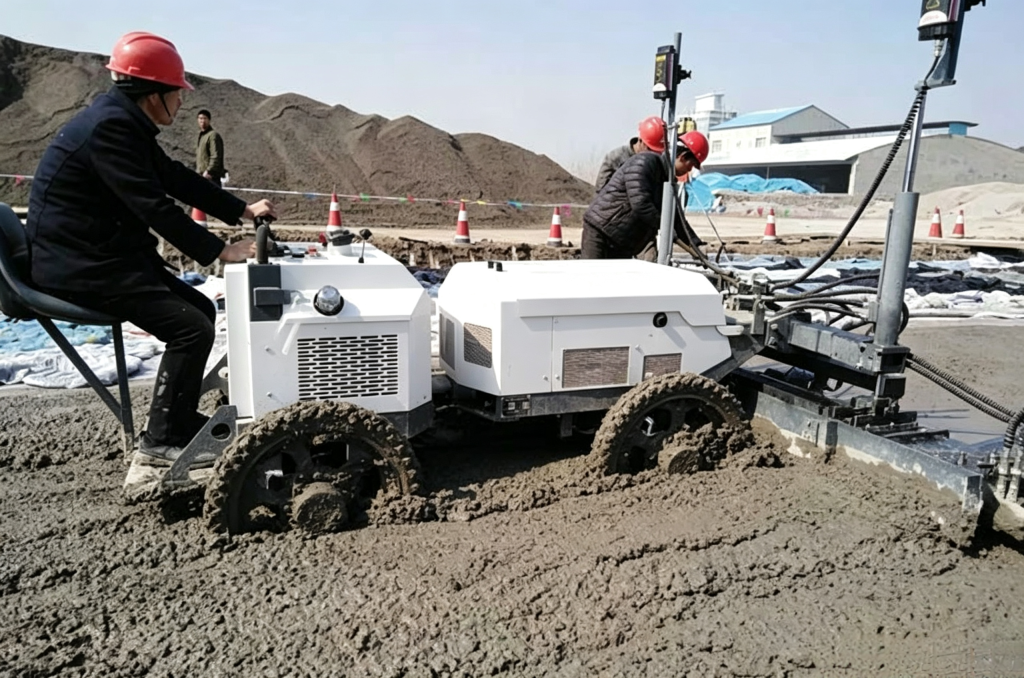

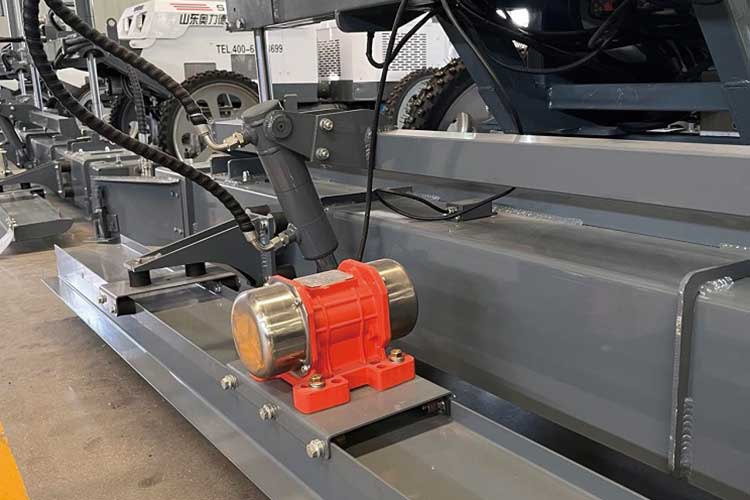

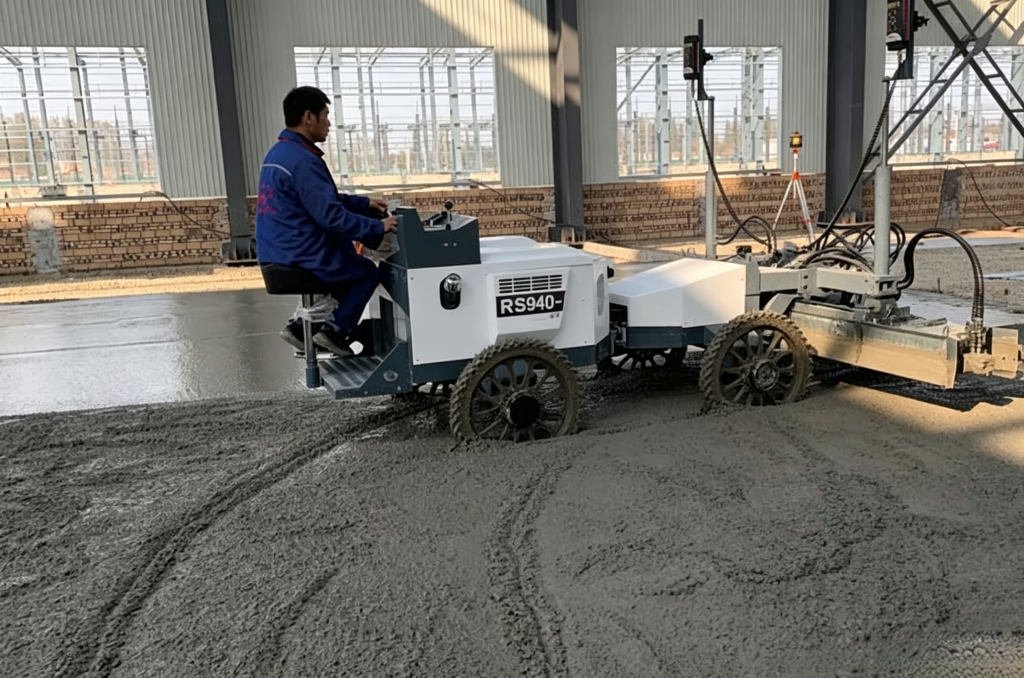

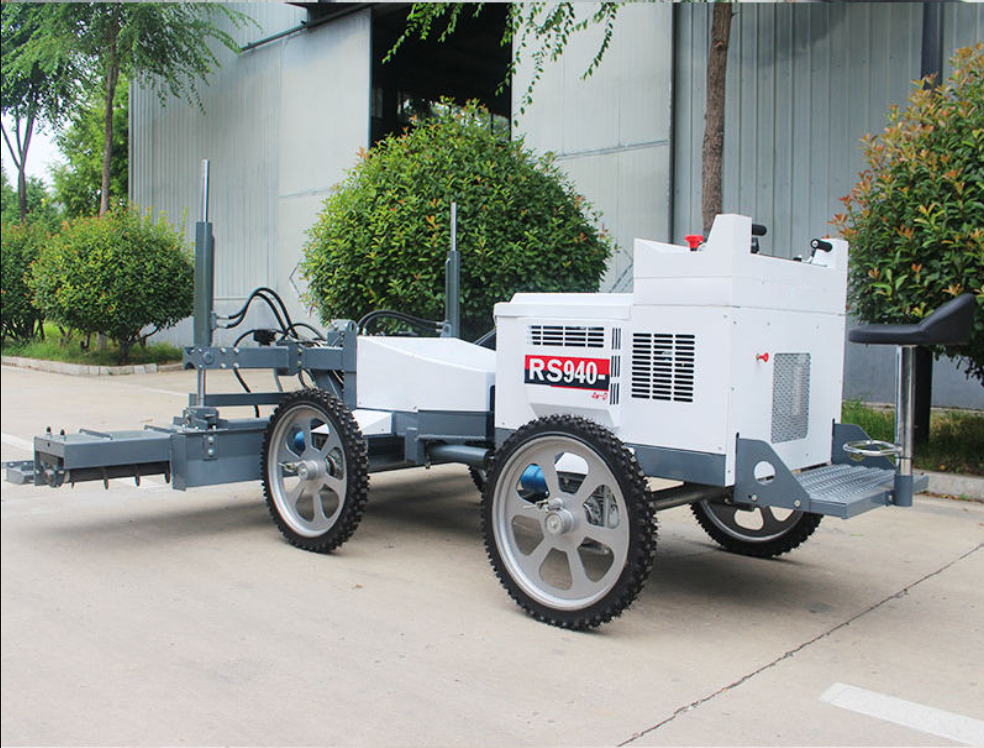

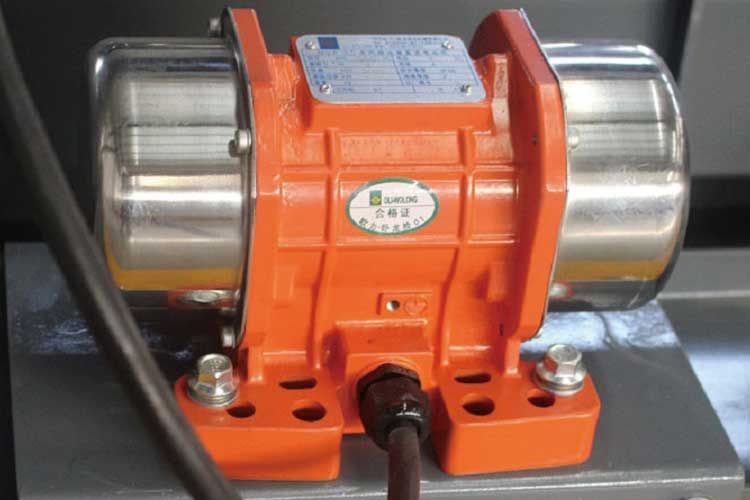

Product Gallery
Get Your S940 Laser Screed Quotation
Contact us for detailed quotation, technical parameters, shipping solution and complete after‑sales support.
